Hình ảnh chỉ có giá trị minh họa, có thể khác sản phẩm thực tế.

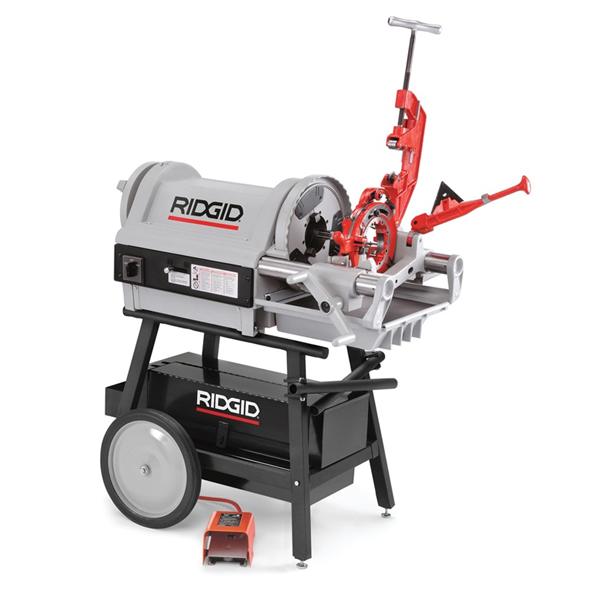

Dụng cụ ren ống 1224 26092
FEATURES
The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
An induction motor helps minimize noise.
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Constant and proper lubrication of dies and workpiece with through-head oiling.
SPECIFICATIONS
Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity 1/4"-2" (6mm-50mm).
Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box Two-speed gear box with a 3:1 ratio.
Chuck Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device Cam action.
Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling Through die head
Standard Equipment
26132 - Diehead, 711, SO Univ. L/Dies
26152 - Diehead, 714 SO Recd L/Dies
26192 - Dies. 1224 2 - 1/2" - 4 NPT HS
47745 - 1/2" - 3/4" Universal Alloy Die Set
47750 - 1" - 2" Universal Alloy Die Set
26212 - 1/4"-4" Wheel-Type Cutter
26217 - 1/4"-4" Blade-Type Reamer
33125 - Wheel, Cutter F229 3 & 4 HD
46030 - 3/16" Hex Key
46040 - Key, Hex 7/32
46190 - 1/4" Hex Key
70835 - Nu-Clear Oil
83975 - Wrench, 3/4 COMB
FEATURES
The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
An induction motor helps minimize noise.
A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
Constant and proper lubrication of dies and workpiece with through-head oiling.
SPECIFICATIONS
Nominal Pipe Capacity 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader.
Bolt Capacity 1/4"-2" (6mm-50mm).
Motor Control Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box Two-speed gear box with a 3:1 ratio.
Chuck Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device Cam action.
Oiling Pump Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling Through die head
Standard Equipment
26132 - Diehead, 711, SO Univ. L/Dies
26152 - Diehead, 714 SO Recd L/Dies
26192 - Dies. 1224 2 - 1/2" - 4 NPT HS
47745 - 1/2" - 3/4" Universal Alloy Die Set
47750 - 1" - 2" Universal Alloy Die Set
26212 - 1/4"-4" Wheel-Type Cutter
26217 - 1/4"-4" Blade-Type Reamer
33125 - Wheel, Cutter F229 3 & 4 HD
46030 - 3/16" Hex Key
46040 - Key, Hex 7/32
46190 - 1/4" Hex Key
70835 - Nu-Clear Oil
83975 - Wrench, 3/4 COMB
Thông số sản phẩm
| Loại ren NPT (1)/ BSPT (0) | 2 NPT |
Danh sách phụ kiện
